Model Number | I91EV |
IP Camera |
Camera | Image sensor | 2×1/2.4" Progressive Scan CMOS |
Max resolution | 4096 x 1860 |
Main Stream | 50 Hz: 20 fps (4096 x 1860)
60 Hz: 20 fps (4096 x 1860) |
Sub Stream | 50 Hz：20 fps（1200 × 536, 960 × 432）
60 Hz：20 fps（1200 × 536,960 × 432） |
Video compression | Main Stream: H.265+/H.265/H.264+/H.264
Sub Stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 16 Mbps |
Built-in Microphone | Built-in Microphone, record with audio |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
Built-in Speaker | Yes, max. sound pressure: 10 cm: 97 dB |

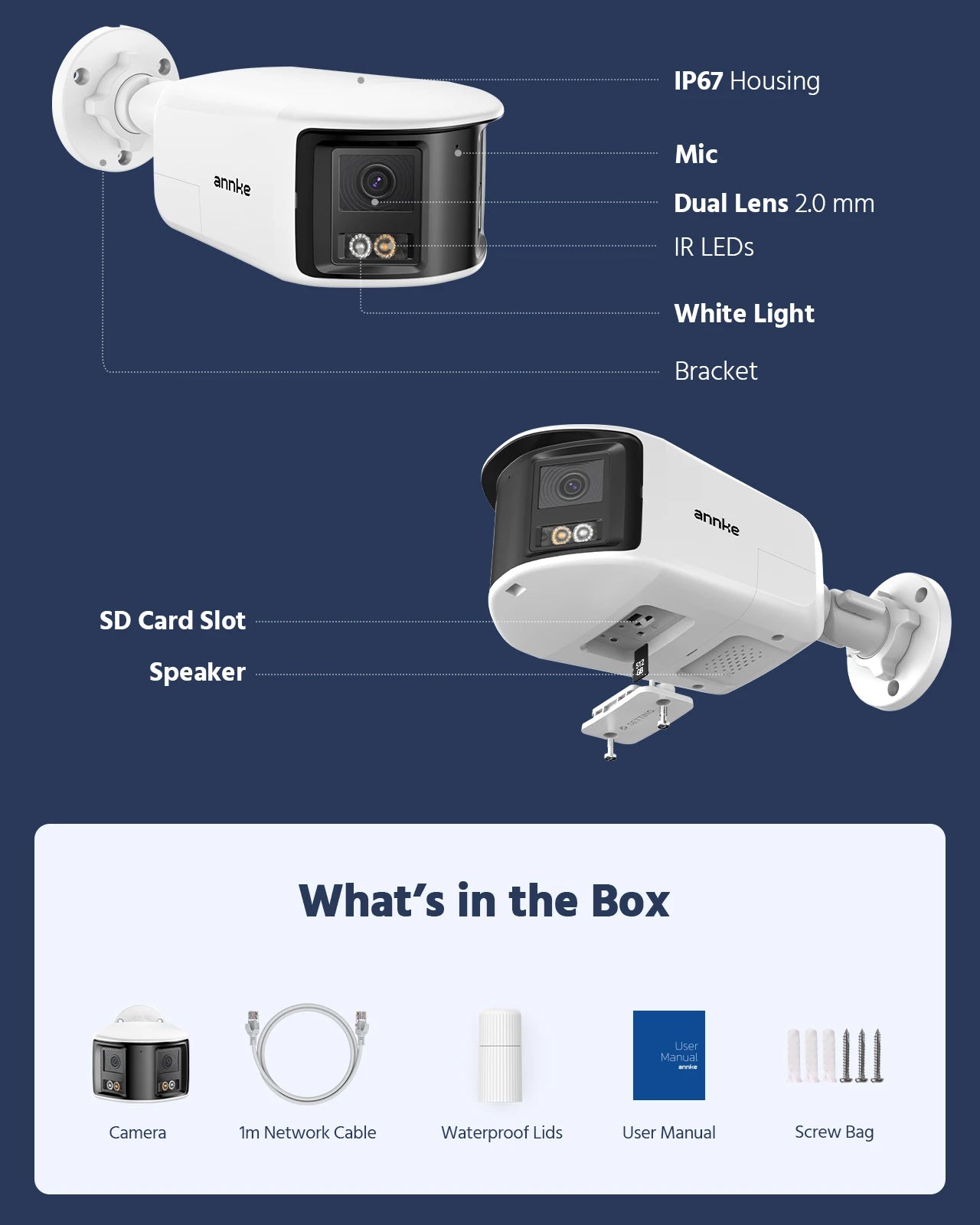

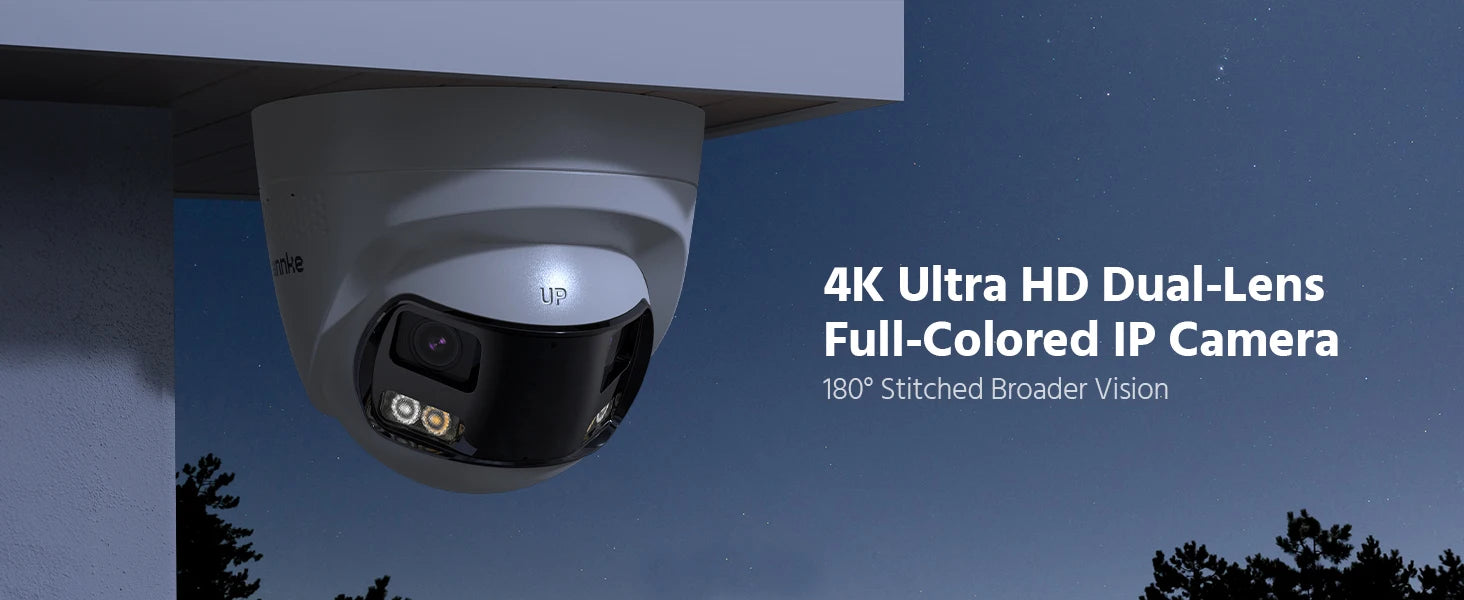

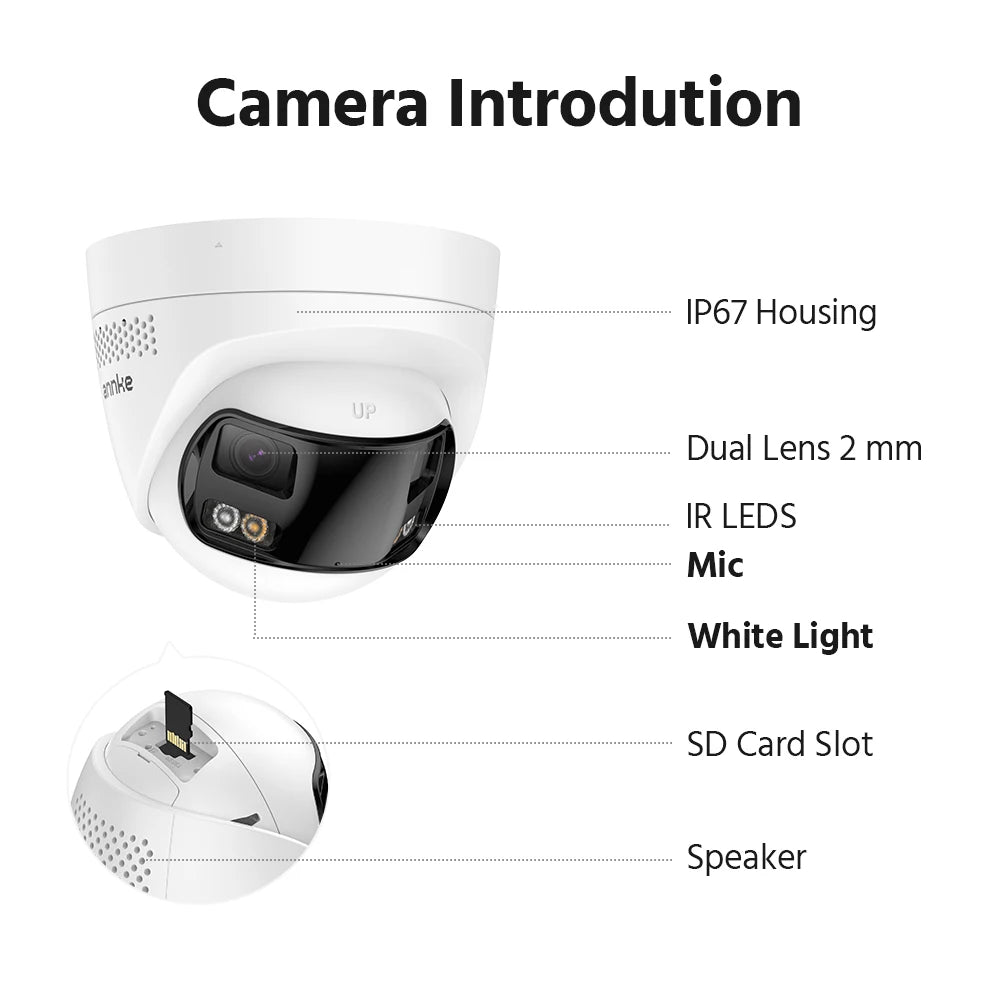

Lens | Dual lens: 2 mm |
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON) |

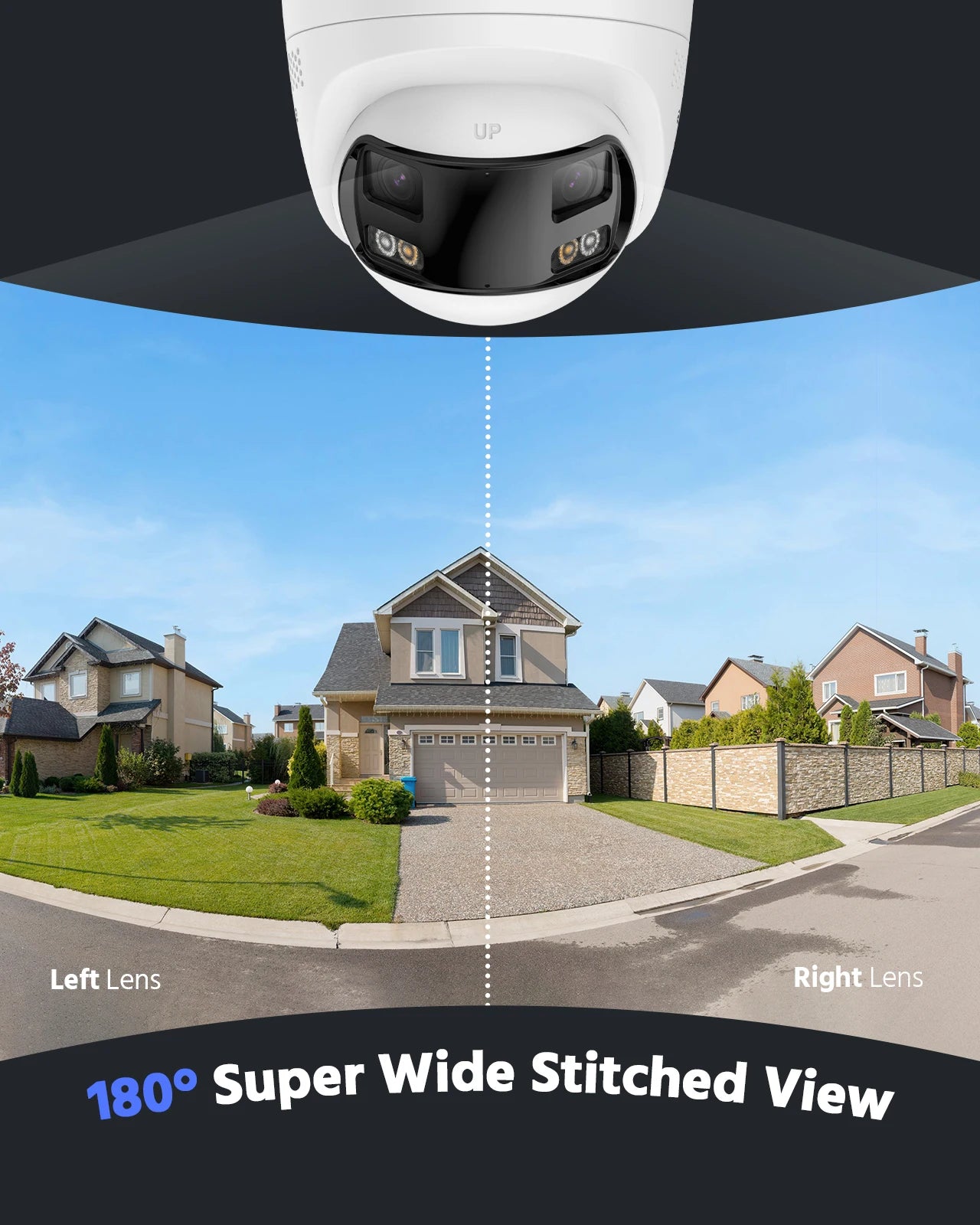

Angle of View | Horizontal FOV: 180°, Vertical FOV: 77° |
Supplement Light Type | Smart light, white light, IR light |
Supplement Light Range | White light up to 30 m, IR light up to 30m |
Motion detection 2.0 | Supoort, include human & vehicle detection |
Image Parameters Switch | Yes |

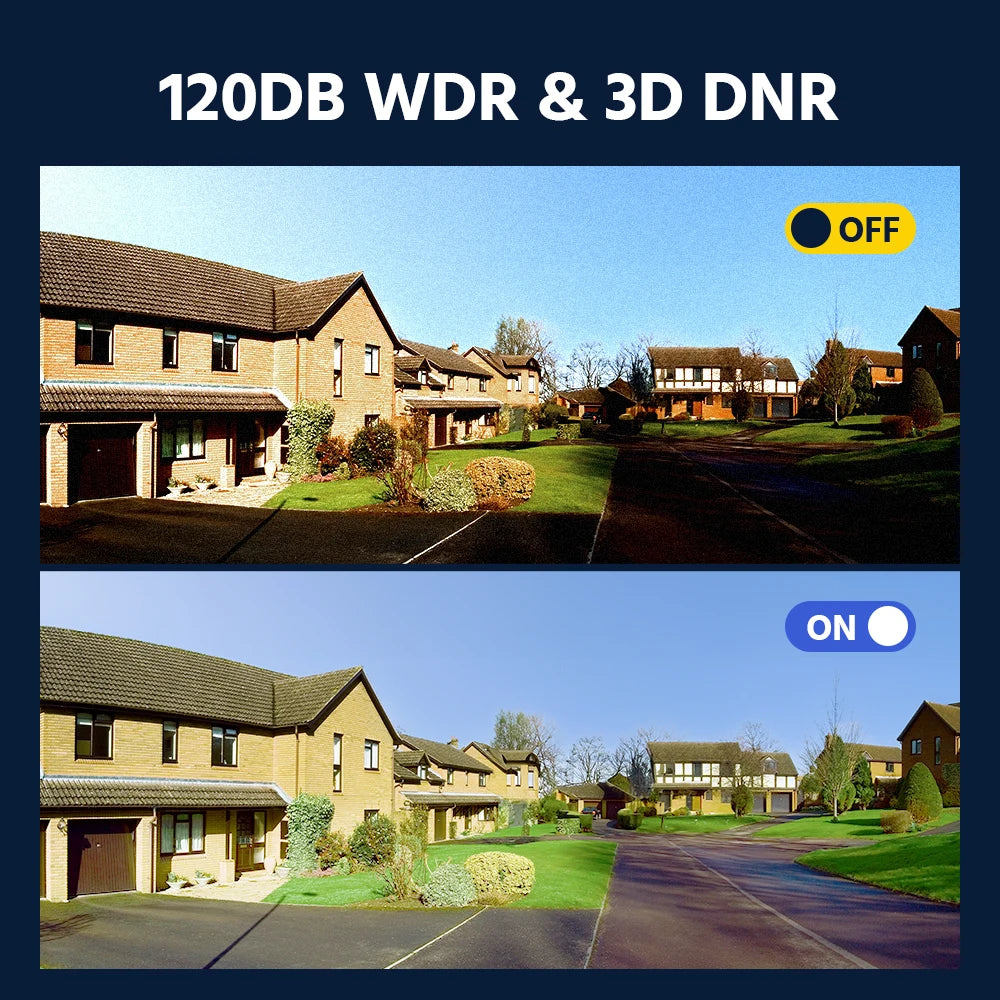

Image Enhancement | BLC, HLC, 3D DNR |
Wide Dynamic Range | 120dB WDR |
Network Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP |
API | Support Open Network Video Interface protocol, version 19.12 |
Basic Event | Motion detection (support human and vehicle detection), video tampering, exception detection |

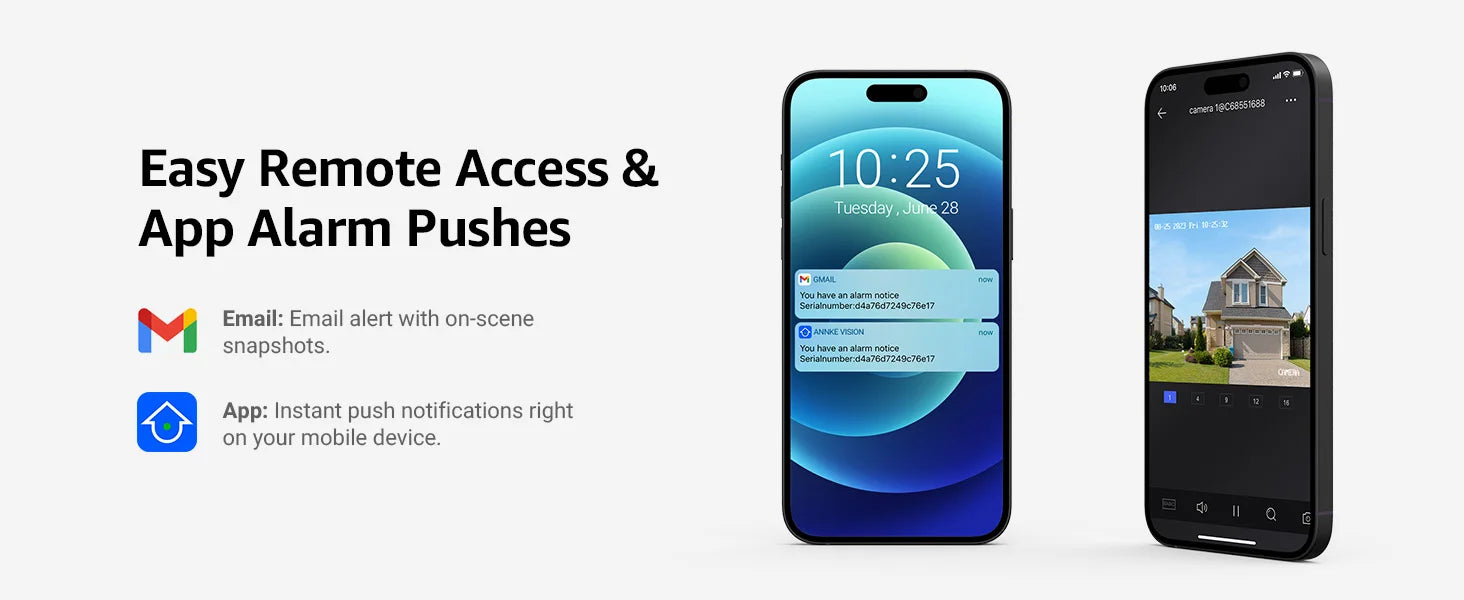

Audio Alarm | Support(Parameters adjustable,support custom audio, can be triggered from APP) |
Flashing Alarm | White light, frequency adjustable, can be triggered from APP |
Region of Interest (ROI) | 1 fixed region for main stream |
Privacy Mask | 4 programmable polygon privacy masks |
General Function | Rotate, remote access, IP Address Filter |
General | Housing | Metal&Plastic, white color |

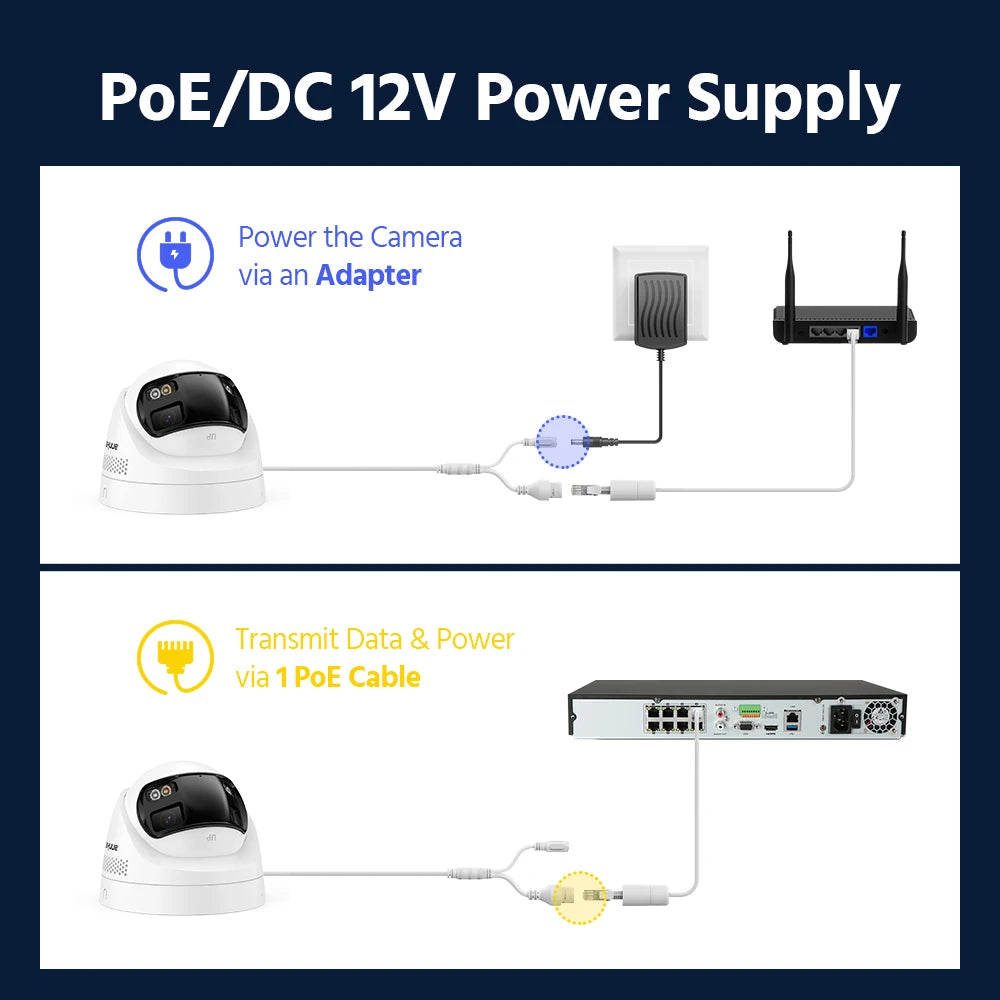

Operating Power | PoE (802.3af)，max 11.5W,
12 VDC ± 25%,Ø 5.5 mm coaxial power plug, max 10W |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |

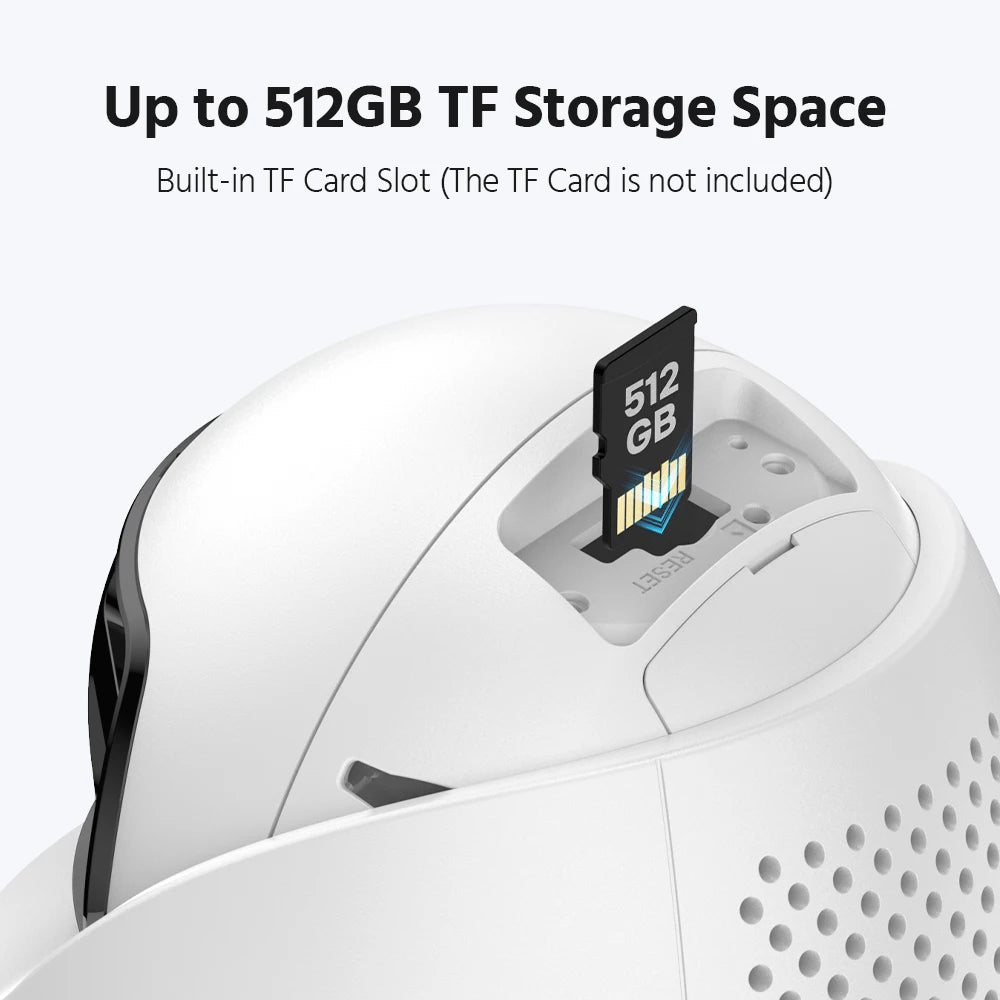

Storage | Built-in micro SD/SDHC/SDXC slot, up to 512 GB |
Hardware Reset | Yes |
Operating Temperature | -22 °F – 140 °F /-30 °C – 60 °C |
Indoor/Outdoor | Indoor/Outdoor |

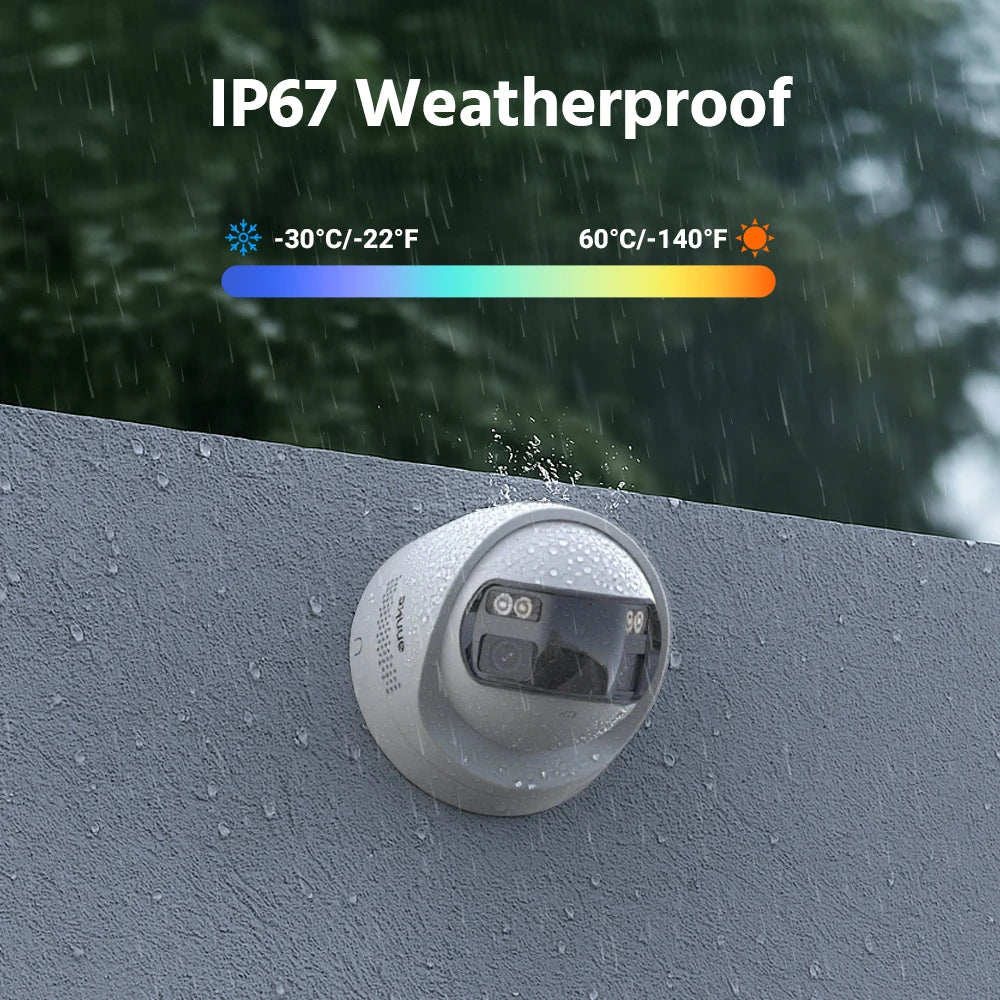

Weatherproof Rating | IP67 |

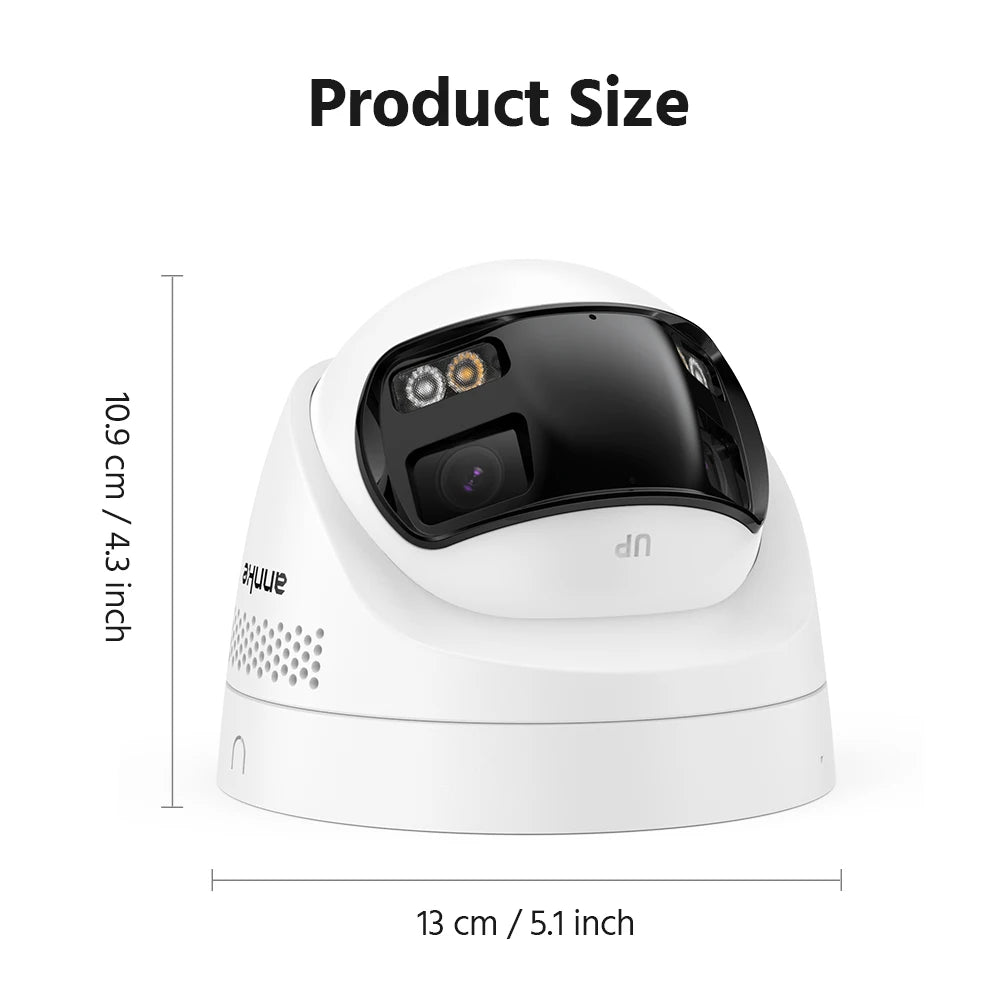

Dimension (L x W x H) | 103.6 mm × 76 mm × 234.5 mm (4.1" × 3.0" × 9.2") |
Weight | Approx. 560 g (1.2 lb.) |
